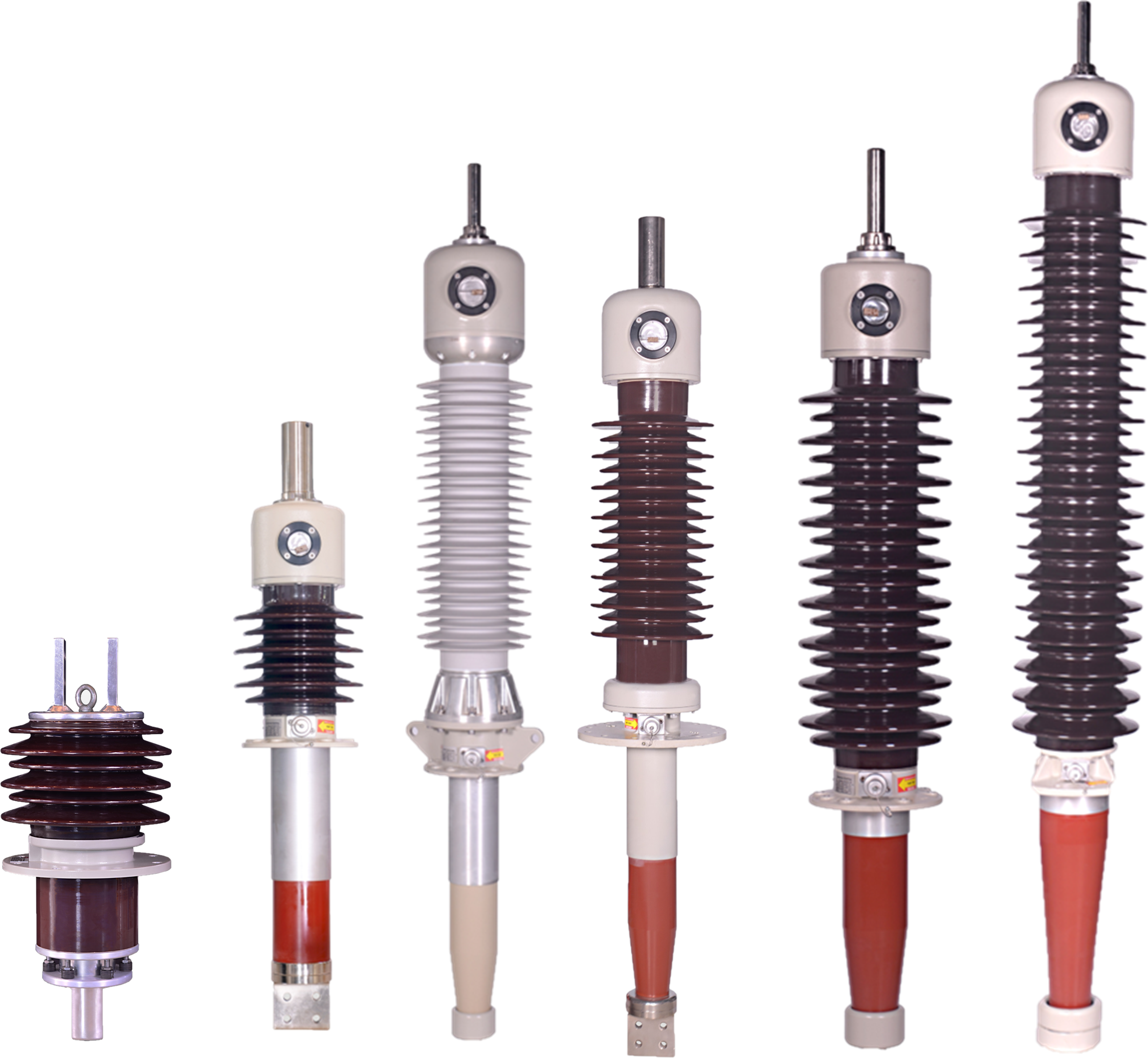

High Voltage Bushings

  • High Voltage and high current condenser bushings are suitable for transformer and substation application. ISO 9001 certified manufacturing unit with highly sophisticated and clean production floor, have supplied more than 20,000 bushings globally.
  • Having a strong track record of providing world-class bushings to clients across the globe, high quality product complying to IEC60137 includes -

  • OIP Condenser Bushing
  • • Type : Oil to Air / Oil to Oil
  • • Rated Voltage : 52kV to 170kV
  • • Rated Current : 400A to 4000A
  • • Connection : Draw Lead / Draw Rod / Stem Type
  • • Housing : Porcelain / Composite

  • LV High Current Bushing
  • • Type : Oil to Air
  • • Rated Voltage : 24kV / 36kV
  • • Rated Current : 4000A to 20,000A
  • • Type : Oil Filled / Communicating / OIP Condenser

  • OIP Condenser Bushing (As a replacement to DIN Bushing)
  • • Type : Oil to Air
  • • Rated Voltage : 12kV / 36kV / 52kV
  • • Rated Current : 800A / 1250A / 2000A / 3150A / 4000A
  • • Connection : Draw Lead / Draw Rod / Stem Type
  • • Housing : Porcelain / Composite

  • Retrofit / Replacement of any make OIP / high current bushing
  • • Customised mounting design
  • • Tailor made oil end
  • • Specially matched creepage
...
